TA-100A

Home > Products > Voice Loggers

Voice Loggers



Series
Models

Telephone Interface

Features

Best For

Loggers with Internal Data Storage - Host PC Not Required

EDiL Logger
EDiL-1U/2U/4U

Digital / VoIP

8 ~ 256 Ports
Industrial PC Based
Remote Data Access
19” Rack Mount

Medium to large scale applications with digital or VoIP lines

CallPad
CallPad-100

Analog &
Handset Digial

1 Port
Desktop Design
Local Keypad/LCD Access
Central Server Optional

Small scale applications requiring local keypad/LCD based user interface

LogMaster
LogMaster-100
LogMaster-400

Analog &
Handset Digial

1 or 4 Ports
USB Drive Support
Browser Based Access
Local Keypad/LCD Access
Central Server Optional

Small to medium scale applications requiring local keypad/LCD based user interface

VLAN-SD
VLAN-100SD
VLAN-400SD

Analog &
Handset Digial

1 or 4 Ports
USB Drive Support
Browser Based Access
Live Monitoring via LAN

Central Server Optional

Small to medium scale applications not requiring local keypad/LCD based user interface

Loggers without Internal Data Storage - Host PC Required

VLAN
VLAN-100
VLAN-400

Analog &
Handset Digial

1 or 4 Ports
Hos PC Required
Live Monitoring via LAN
Application Based Access

Small scale applications not requiring local keypad/LCD based user interface

VLAN-164

Analog

4 Lines per Card
16 Cards per Chasis
Host PC Required
Live Monitoring via LAN
Application Based Access

Medium to large scale applications with analog lines

Logger Accessories

VCU
VCU-M
VCU-100

n/a

Omnidirectional
High Sensitivity
Adjustable Gain

Security surveillance
Conference/meeting

Grand Voice Logger (GVL) System

Grand Voice Logger (GVL) is a sophisticated system architecture designed to be the grand solutions to a variety of voice logging applications. It provides centralized data management and seamlessly integrates most Eletech network enabled voice loggers into a homogeneous user experience.

Based on the GVL architecture, a highly versatile multi-location system can be implemented over the Internet with voice loggers of different kinds. This allows the selection of the most suitable loggers for each location based on functionality, capacity and cost. The GVL architecture, somewhat similar to other cloud based solutions, is actually superior because of its immunity to network congestions/failures thanks to the local data storage in each logger within the architecture.

At the center of the GVL architecture is a powerful server with user friendly interface for remote users to manage configurations, access record files, and monitor calls in real time.

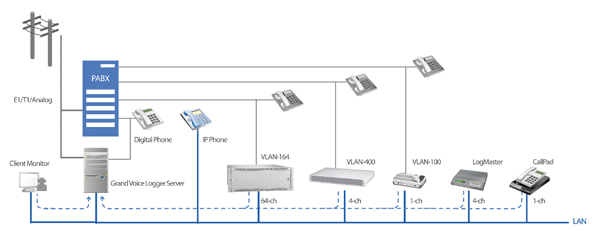

 Grand Voice Logger (GVL) System Architecture

The advantages of the GVL architecture can be best demonstrated with the following example. Consider the case of a large corporation consisting of a head office and several branch offices. The head office has a number of T1 lines while each branch office has several analog lines. The best solution is to install a GVL Server with the EDiL logger option in the head office, and a VLAN, VLAN-SD or LogMaster in each branch office, all connected together via the Internet (or Intranet/VPN for higher security). This allows the head office to perform centralized data management while personnel of all offices are provided with a uniform user interface for data access.

Eletech is proud to offer the GVL system with our 30 years of technical expertise, product support and customer service. We stand behind our products with unconditional commitment to customer satisfaction. So let the GVL system be the grand marshal in your parade to success!

EDiL, CallPad, LogMater and GVL are trademarks of Eletech Enterprise Co. Ltd.
