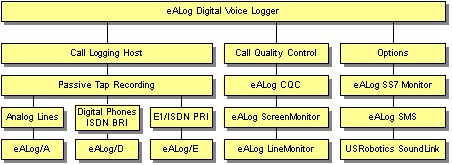

eALog Digital Voice Logger

eALog is an open platform digital voice logger built with cutting edge technologies. It is capable of passively tapping into digital or analog phone lines for real-time call recording and/or monitoring without any noticeable interruption in the service. Recordings are stored internally and can be retrieved locally or remotely via telephone or LAN. eALog can be purchased as a turnkey system complete with application software, or with SDK (software development kit) for building your own system.


Features

*  Open architecture with 8 ~ 256 channels per system
*  Flexible recording modes: automatic, selective, on demand
*  Compression schemes supported: GSM, Microsoft GSM, WAV, ADPCM, G.729A
*  Advanced streaming technology ensures playback quality over LAN
*  Real-time monitoring via LAN
*  Versatile recording start methods: voltage change, network control, on/off hook,
   D-channel, desktop access
*  Supports DAT, DVD-RAM, NAS (network access storage) as backup device
*  Optional utilities provide quality control for call centers (eALog CQC) and SS7 signal
   monitoring for E1 trunk logging (eALog SS7Monitor)

Applications

*  Banks, stock brokers, commodity brokers
*  Call centers, radio dispatch centers
*  Security alarm companies, emergency services
*  Intelligence agencies, police stations, attorney offices
*  Airport control towers, railroad stations, power plants

eALog SDK

eALog software development kit (SDK) supports VC++, VB, Delphi, and C++Build programming languages for implementing powerful functions on call recording, monitoring and administration tasks for call center applications.

Download

*  eALog Brochure


VCU-100 Concealed Microphone

The VCU-100 consists of a highly sensitive microphone and a pre-amplifier. It is an option for the voice loggers and usually used in conjunction with a video camera in security monitoring applications. The gain of the pre-amplifier is adjustable in order to obtain the best recording quality under all situations.
