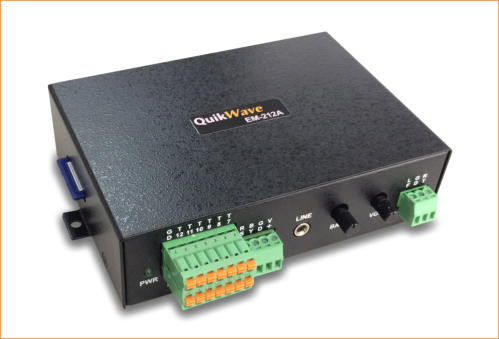

EM-212A QuikWave Audio Player

• Stereo MP3, near CD quality • Trigger Input: 12 • Relay Output: 0 • Serial Port: 0 • Input Voltage: 12 VDC • Output Power: 6W x 2 EM-212A is a rugged industrial MP3 player designed for the most demanding jobs. Much like a CD player playing sound tracks from a CD, EM-212A plays sound files from an SD/SDHC memory card but without the moving parts to wear and tear. The unit conforms to the ISO 11172-3 MP3 standard (up to 320 Kbps) and provides better sound quality than other MP3 players supporting 256 kbps or less. Audio programming for the unit is as simple as copying sound files to the memory card via a card reader attached to the computer. The type of memory cards used, the SD/SDHC cards, are most popular and readily available in a number of capacities to suit different needs. Hundreds of tracks totaling hours of audio can be stored onto an inexpensive card for instant playback. Powered by a single voltage DC power supply, EM-212A has a built-in power amplifier which can be permanently disabled to save power. A headphone output is available, which can also feed an external amplifier if desired. Audio playback can be triggered with a variety of methods such as push buttons, motion/alarm sensors and PLCs. EM-212A can be easily configured to work in different operation modes such as: • Start the playback when the trigger is applied or removed. • Allow the playback to be interruptible by another trigger or not. • Play the sound just once or loop it till the trigger is removed. Housed in a compact yet rugged metal case, EM-212A can be easily secured into place with the integrated mounting tabs on each side of the unit. Wiring is done via screw terminals and requires only a small screw driver. The screw terminals are unpluggable, making it fool-proof to replace the unit in the field when necessary.
