ELETECH

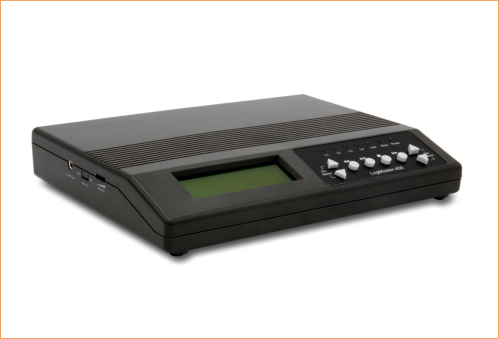

LogMaster™ All-In-One Voice Logger

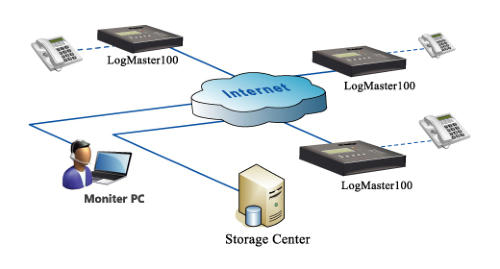

• 1 - 8 analog ports • Standalone with internal memory • External USB drive support • Local data access (LCD + keypad) • Network data access • Central server optional Built with cutting edge technologies, LogMaster is a family of compact all-in-one voice loggers with internal flash memory storage and local record access for stand alone operation. LogMaster also provides two network based services: browser based data access and cloud based data archiving. LogMaster provides analog ports for recording analog lines directly. Digital lines can also be recorded by tapping into the handset. Record files are saved in Windows WAV format for LogMaster-100 & LogMaster-400, MP3 format for LogMaster-800. In order to facilitate searching, record files are tagged with date/time, inbound/outbound number, and duration. In addition to the local access with keys and LCD, record files can also be accessed remotely over the network in a brower based fashion, eliminating the need for a special application program. There is a built-in microphone in LogMaster-100 for meeting/conference recording. An external microphone (VCU-M or VCU-100) can be optionally used to achieve better recording results. LogMaster-800 Specific Features • 19" embedded Linux platform • Built-in 5-inch touch screen • NTP for network time synchronization • Auto lock and password protection • MP3 16Kbps file format • SD Card or SSD Drive, expandable up to 2TB Optional Centralized Storage

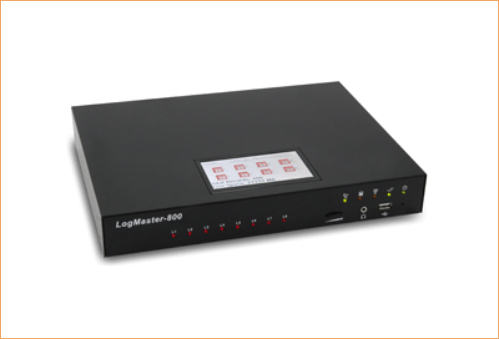

Available Models LogMaster-100: 1 port LogMaster-400: 4 ports LogMaster-800: 8 ports Downloads LogMaster-100 User’s Manual LogMaster-400 User’s Manual LogMaster-800 User’s Manual Optional Accessories Microphone VCU-M & VCU-100 • Omni-directional • High sensitivity • Adjustable gain • Meeting/conference recording • Security surveillance recording
