ELETECH

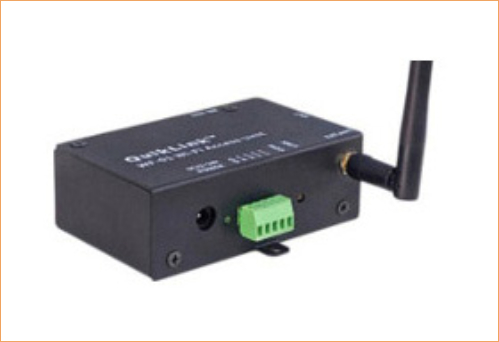

WF-01 QuikLink WiFi Access Unit

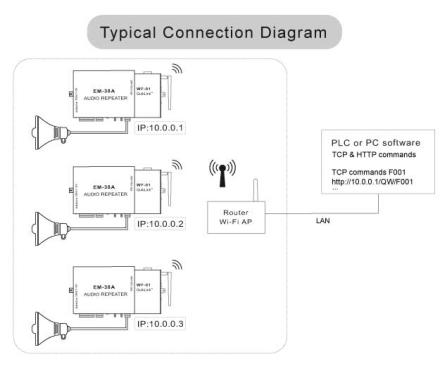

• TCP & HTTP control commands • WiFi AP/STA uplink dual mode (2.4GHz) • Output Control: volume and balance • Web interface w/ mobile device support • Four user defined digital inputs • High performance antenna QuikLink WF-01 provides WiFi control access to RS-232 equipped QuikWave audio players. It can function as either an access point (with SSID) or a bridge to a 2.4GHz WiFi network. Both TCP control commands and HTTP control commands are supported via the built-in TCP server and Web server respectively, allowing the user to wirelessly control the audio player from a PC or a mobile device with little effort.
Command Examples TCP Command Examples F001 = Play file 001 P = Pause R = Resume S = Stop V6464 = Set output volume to 64 for both channels B = Busy? (check current status) HTTP Command Examples GET http://10.0.0.1/QW/F001 = Play file 001 GET http://10.0.0.1/QW/P = Pause GET http://10.0.0.1/QW/R = Resume GET http://10.0.0.1/QW/S = Stop GET http://10.0.0.1/QW/V6464 = Set output volume to 64 for both channels GET http://10.0.0.1/QW/B = Busy? (check current status)
